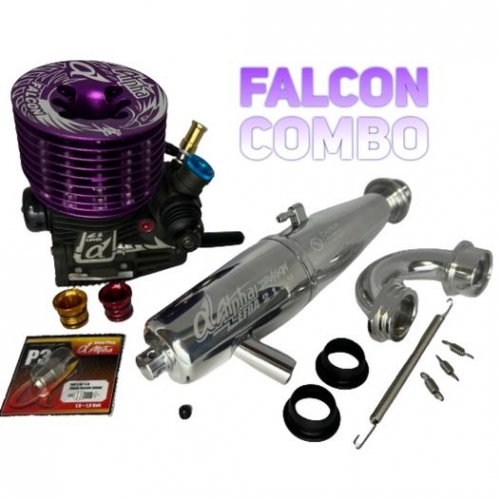

Falcon Pro competition engine

Introducing the new Alpha engine, the Falcon series, all new for 2024. The Falcon is a fusion of cutting edge technology and innovative features.

pre broken-in, 3 port engine designed to the very highest specification. The Falcon continues with the Dragon V’s benefit of being easy to tune and within 2-4 tanks, be ready to race.

With the new engine, we are able to improve the following items;

1. Crankshaft Precision: The crankshaft undergoes meticulous CNC machining with added dynamic balancing weights, eliminating engine vibrations for optimized mid-low range acceleration and high-speed stability.

2. Cylinder Enhancement: Building upon Alpha's advanced engine pre-grinding techniques, we've introduced 2D projection measurements for precise piston fitting, ensuring impeccable factory quality.

 3. Piston: A revolutionary silicon-treated equalization process enhances durability, providing increased wear resistance and a prolonged lifespan with a stable thermal expansion coefficient. Perfectly suited for the demanding environment of A Main finals, delivering consistent and efficient performance over extended periods of high-intensity operation.

Experience the Alpha FALCON Series- where professionalism meets excitement in the world of new technology and performance.

SPECIFICATION

• Displacement - 3.49cc
• Bore - 16.26mm
• Stroke - 16.8mm
• Practical RPM Range - 4,000 to 41,000 RPM
• Peak Power Output - 2.86PS @39,500 RPM
• Weight - 360g
• Ports - 3 port
• Sleeve - ABC
• Crankshaft Diameter - 14mm
• Crankshaft Type - Anti-friction, silicone filled design
• Glow Plug Type - Turbo
• Exhaust Type - Rear
• Carburetor Diameter - 8mm fitted (variable)
• Carburetor Type - 3 needle
• Crankcase Material - Aluminium
• Cooling Head - Purple Anodised Aluminium

2134 Polished exhaust system

Based on the previous EFRA Pipe sets from Alpha. This version is ideal to unleash the power of the Dragon IV engine series
